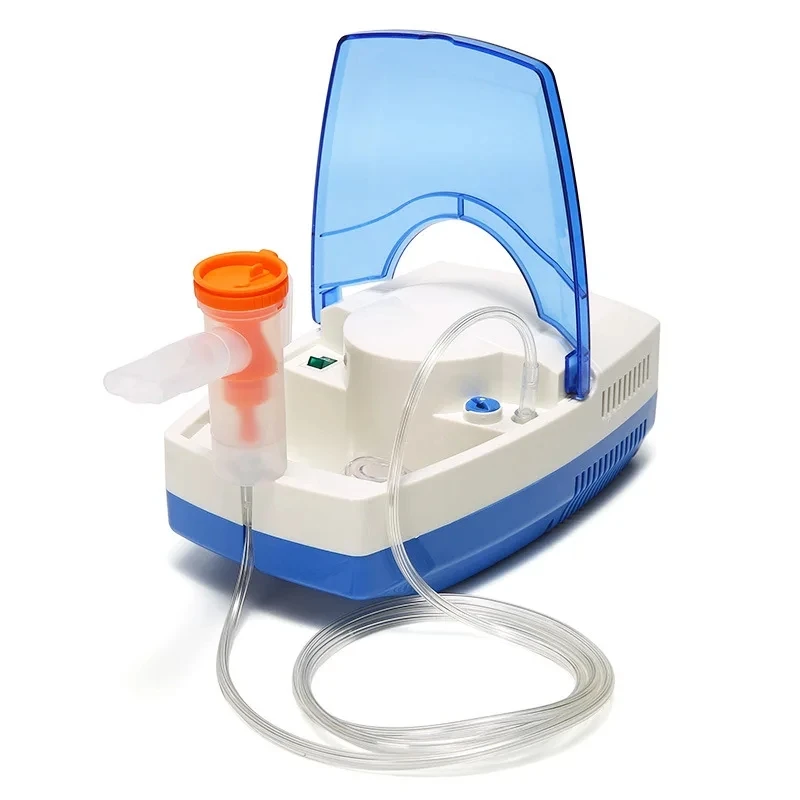

Quiet High Flow Compressor Nebulizer

The Quiet High Flow Compressor Nebulizer is a device used to treat respiratory diseases. It converts liquid medication into fine particles that can be inhaled into the lungs and bronchi through breathing, achieving therapeutic effects. This device is widely used in hospitals, clinics, and home settings for the treatment of conditions such as acute bronchitis, chronic bronchitis, pharyngitis, and asthma.

1. Efficient Atomization: High-speed airflow transforms medication into fine particles, ensuring deep absorption into the respiratory tract.
2. Low-Noise Design: Low operating noise, typically below 65 decibels, provides a comfortable treatment environment for patients.
3. Portability: Compact and lightweight, easy to carry and use, suitable for home and travel use.
4. Easy Operation: One-touch operation is simple and easy to understand, making it suitable for both the elderly and children.
5. Low Drug Residue: Low drug residue ensures full drug utilization and minimizes waste.
6. Suitable for All Ages: Equipped with adult and child masks, as well as a mouthpiece, it is suitable for patients of all ages.

1. Airflow Generation: When powered on, the silent compressor activates, generating high-pressure, high-flow compressed air.
2. Medication Atomization: Compressed air flows through a tube into the nebulizer cup. The high-speed airflow creates negative pressure within the cup, breaking the medication into tiny aerosol particles (the "Venturi effect").
3. Particle Sorting: A baffle within the nebulizer cup limits the size of the aerosol particles, allowing only "effective aerosol particles" (capable of penetrating the alveoli) with a diameter of 1-5μm to be inhaled through the mask/mouthpiece.
4. Quiet Operation: The compressor's brushless motor, vibration-damping structure, and soundproof housing work together to reduce operating noise to 50-55dB (equivalent to the sound of a normal conversation and significantly lower than the 65-75dB of conventional compressed nebulizers).

General Safety Precautions:
Before each use, always inspect the device and its components to ensure they are in good working order. In particular, check the following:
The flapper, nozzle, or air line for damaged.
The nozzle for blockage.
The compressor for proper operation.
When using this device, the pump in the compressor will produce some noise and vibration. The discharge of compressed air from the atomizer kit may also produce some noise. This is normal and does not indicate a malfunction or shorten the device's lifespan.
Operate this device strictly for its intended use. Do not use this device for any other purpose.
