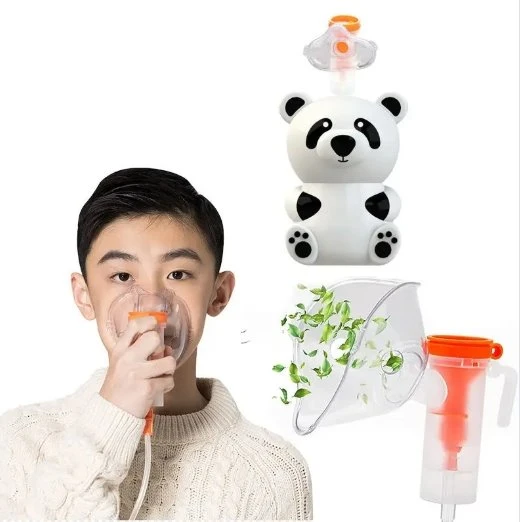

The mini cartoon kids nebulizer is composed of a body, a liquid medicine cup assembly, a suction nozzle, an inhalation mask , and a feed pipe, wherein the body is mainly composed of a compression pump, a filter assembly (filter sheet, filter sheet cover) and a control system. The liquid pumped through the liquid channel is mixed with the compressed air produced by the atomizer pump. The compressed air mixed with the liquid hits the upper septum,it turns into a fine mist and shoots out. Designed specifically for children, the nebulizer features a cute panda image to attract children's attention and make them feel happy and relaxed during use.
Product Parameters
| Brand Name | EXANOVO or OEM |
| Model | MC-NL307 |
| Pressure range | Under normal working conditions, the pressure range of device is 60kPa～130kPa. |
| Residual liquid volume | ≤0.7mL |
| Machine noise | Noise of machine in normal operation: ≤ 65dB (frequency-weighting characteristic A) |
| Continuous working hours | When the device works continuously for more than 4 hours under normal temperature and AC power supply, it should be able to work normally. |
| Enclosure leakage current | Normal condition≤0.1mA; Single fault condition≤0.5mA. |
| Patient leakage current | Normal condition≤0.1mA; Single fault condition≤0.5mA. |
| Droplet partical size | 1um-5um |
| Certification | CS/ISO13485 |
| Temperature | 5℃~40℃ |
| Relative humidity | ≤80% |
| Application | For Commercial & Home Use |
Product Cautions
Please read this manual carefully before use.
1.The nebulizer is used for therapeutic purposes only. Do not use for any other purpose, otherwise it may cause danger. The manufacturer is not responsible for improper use.
2.This product should not be used in patients who are unconscious or unable to breathe on their own or are mentally ill.
3.When multiple people use this product at the same time, it must be cleaned and disinfected separately before each person uses it. Be sure to replace the cup assembly and suction nozzle or mask. Otherwise it may cause infection.
Maintenance and Cleaning
Wash your hands carefully before cleaning and disinfecting the liquid cup assembly. Clean the parts after each use to remove residual medication. This prevents poor atomization and reduces the risk of infection.
• Cleaning liquid cup assembly, suction mask, suction nozzle:
Wash with warm water and neutral detergent. Rinse well with clean hot water, pat gently to remove excess moisture, and dry naturally in a clean area.
• Clean the delivery pipe:
First make sure that the power plug is removed from the power socket. Wipe clean with a soft cloth dampened with water or a mild neutral detergent.
• Disinfection:
Parts must be disinfected before the first use of the product, after the product has not been used for a long time, and after the last treatment of the day. If the parts are seriously contaminated, replace them with new parts. Please use the following methods to disinfect.
Boiling disinfection
Liquid cup assemblies, aspirators, and nasal aspirators (sold separately) can be sterilized by boiling a large amount of water for 15 to 20 minutes. After boiling, carefully remove the parts, remove excess water and dry naturally in a clean environment. It is recommended to replace the medicine cup assembly after about 100 to 120 treatments or after about 20 boil cycles.
Caution: Do not boil and disinfect the inhalation mask and the feed pipe.
